سیستم اینترلاک اتاق تمیز



سیستم اینترلاک اتاق تمیز در محیط‌ های آزمایشگاهی، مراکز تولید دارو و اتاق های ایزوله به منظور افزایش بهره وری و رعایت استانداردهای تعریف GMP، مورد استفاده قرار می‌گیرد.

There are environments in health and pharmaceutical complexes that are completely different in terms of temperature, pressure and pollution.

جهت تفکیک این محیط ها، راهرویی ایجاد می گردد که توسط درب هائی از هم تفکیک می شوند.

شرط باز شدن هر درب بسته بودن درب های دیگر می باشد.

این مورد توسط Magnetic sensors ‌و یا سنسور داخلی قفل دراپ بولت تشخیص داده می شود و  به کنترلر IN02P سیستم اینترلاک اتاق تمیز  ارسال می گردد.

سیستم اینترلاک اتاق تمیز پس از تحلیل شرایط ، فرمان مناسب جهت Electrical Lock, drop lock or Magnetic Lock Exports installed on doors.

Each door has an entrance and an exit that can be equipped with a traffic control system or exit key. This depends on the sensitivity of the collection and the user request.

In this environment, to interlock two doors, for each door, one output command for electric lock and 3 input commands for direction. exit button, Magnetic sensorand Access Control System there is.

تمام تجهیزات نصب شده، فرمان‌های خود را به سیستم اینترلاک اتاق تمیز ارسال می‌نمایند تا پس از تحلیل شرایط توسط سیستم اینترلاک، خروجی مناسب صادر گردد.

این ساده‌ترین مدل از یک سیستم اینترلاک اتاق تمیز می باشد که با توجه به نیاز کاربر قابل تعمیم است.

for example :

- Display with a allowed and unauthorized crossing display.

- The door is open, the system alarm is activated more than the specified time.

Finally, any other practical request can be implemented and executed by the employer.

Interlock system components

هر سیستم اینترلاک اتاق تمیز از دو درب تا پنج درب (به طور معمول) هستند شامل برد کنترلر، Drop bolt electric lock (According to the needs of the user, electric or magnetic front locks) and Exit Buttons is.



سیستم اینترلاک اتاق تمیز دو درب شامل :

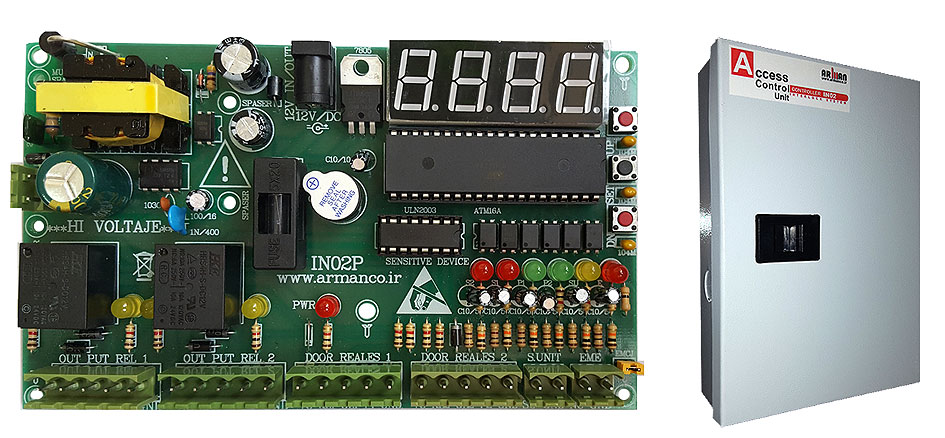

- A pieces IN02P controller board

- two pieces Drop bolt electric lock with a sensor

- Four pieces Exit Button PL Steel with status light

سیستم اینترلاک اتاق تمیز سه درب شامل :

- two pieces IN02P controller board

- 3 pieces Drop bolt electric lock with a sensor

- 6 pieces Exit Button PL Steel with status light



ویژگی های سیستم اینترلاک اتاق تمیز

- Ability to create a network and increase the number of doors to 256 doors

- Designed based on the latest world standards GMP

- Has two modes of operation DOOR and Safe box with the ability to adjust on the board

- Has modular settings using seven segments and microswitches

- Test the inputs and outputs using LEDs built into the board

- Has voltage output for all types electric lock, Drop bolt lock and magnetic lcok

- Has a performance bezel on the board with the ability to enable and disable the system menu

- Ability to adjust the time for each relay separately from 0.1 to 99 seconds in DOOR mode

- Ability to set the time to close the door after opening, from 0.1 to 99 seconds

- Ability to set the time to open the door after sending the signal, from 0.1 to 99 seconds

- It has independent output to connect to Fire system and BMS system as NC command

- It has an input voltage of 220 city electricity and an internal power of 12 volts 2.5 amps with input and output capability.

- Ability to adjust the opening time of the second door after closing the first door and vice versa, from 0.1 to 99 seconds

- Ability to enable and disable emergency output by Exit Buttons As well as setting the activation time

- Display all details of system operation including input, output and all errors on the board by LED
